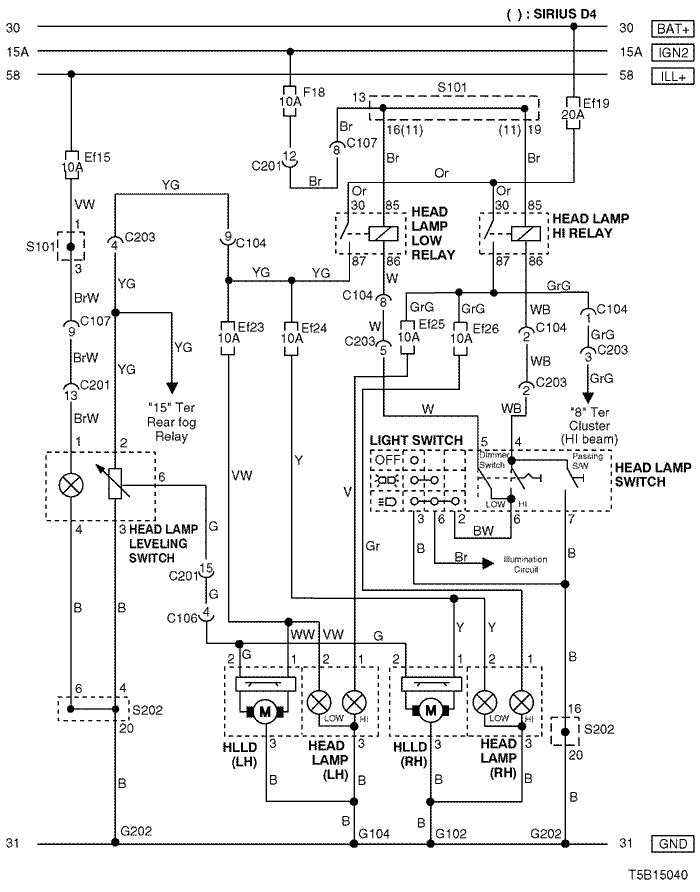

8. HEAD LAMP & HEAD LAMP LEVELING DEVICE (HLLD) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C104 (15 Pin, White) | Front – Body | Behind Left A Pillar |
| C106 (8 Pin, Black) | Front – Body | Behind Left A Pillar |
| C107 (10 Pin, Black) | Front – Body | Behind Left A Pillar |
| C201 (18 Pin, Blue) | Body – IP | Under I/P Fuse Block |
| C203 (14 Pin, Black) | Body – IP | Under I/P Fuse Block |
| G102 | Front | Behind Left Head Lamp |
| G104 | Front | Behind Right Head Lamp |
| G202 | IP | Behind Right Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S101 (MR-140/HV-240)
S101 (SIRIUS D4)
S202
sm
