11. ILLUMINATION CIRCUIT

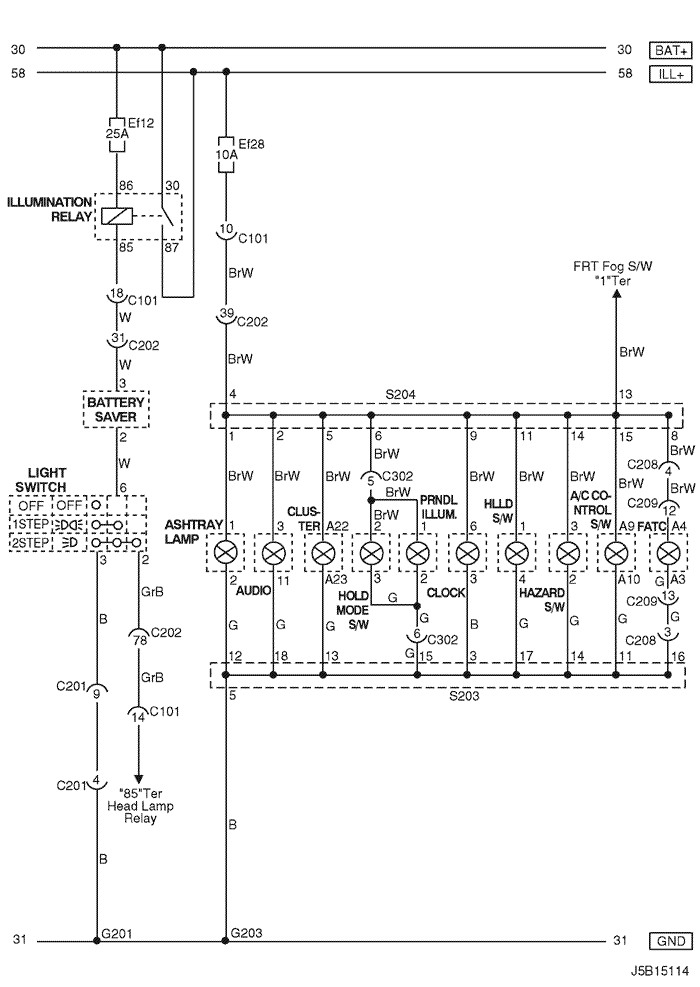

1) ILLUMINATION CIRCUIT - W/O DIMMER CONTROL
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| C302 (6 Pin, White) | I.P – Console | Below Console Box |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G201 | I.P | Left I.P Fuse Block |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

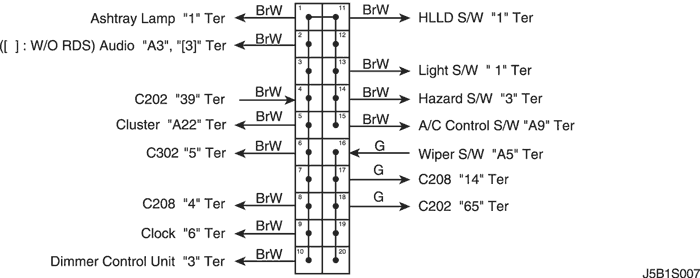

d. SPLICE PACK
S203
S204

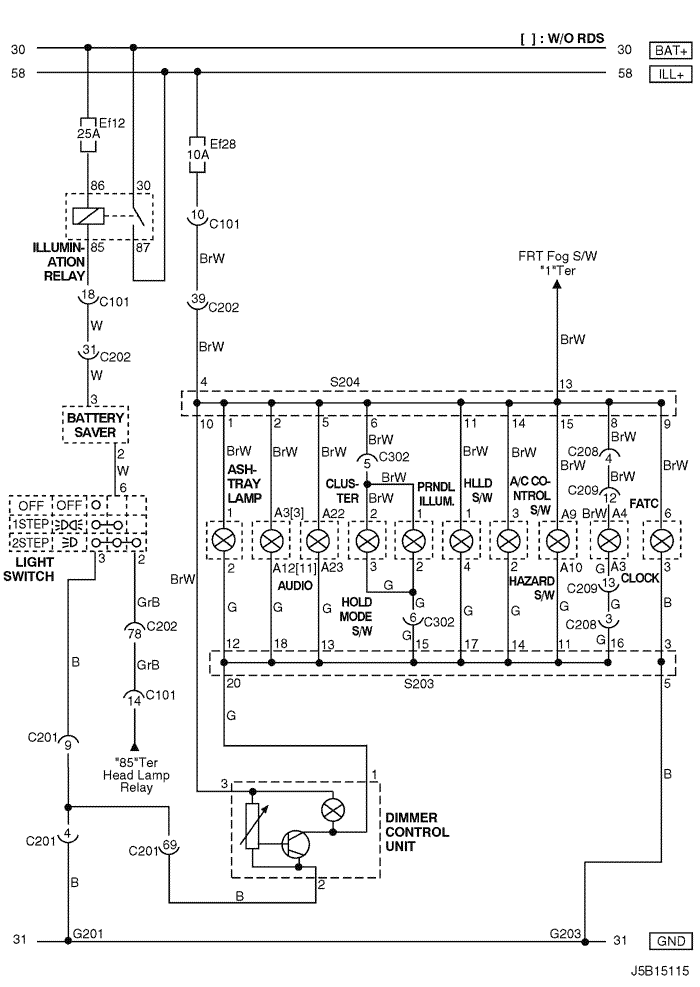

2) ILLUMINATION CIRCUIT - W/ DIMMER CONTROL
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C208 (15 Pin, White) | I.P – FATC | Behind Glove Box |
| C209 (20 Pin, Black) | FATC – FATC.Aux | Between Heater Core and Evaporator Core |
| C302 (6 Pin, White) | I.P – Console | Below Console Box |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G201 | I.P | Left I.P Fuse Block |
| G203 | I.P | Behind Left Audio Bracket |

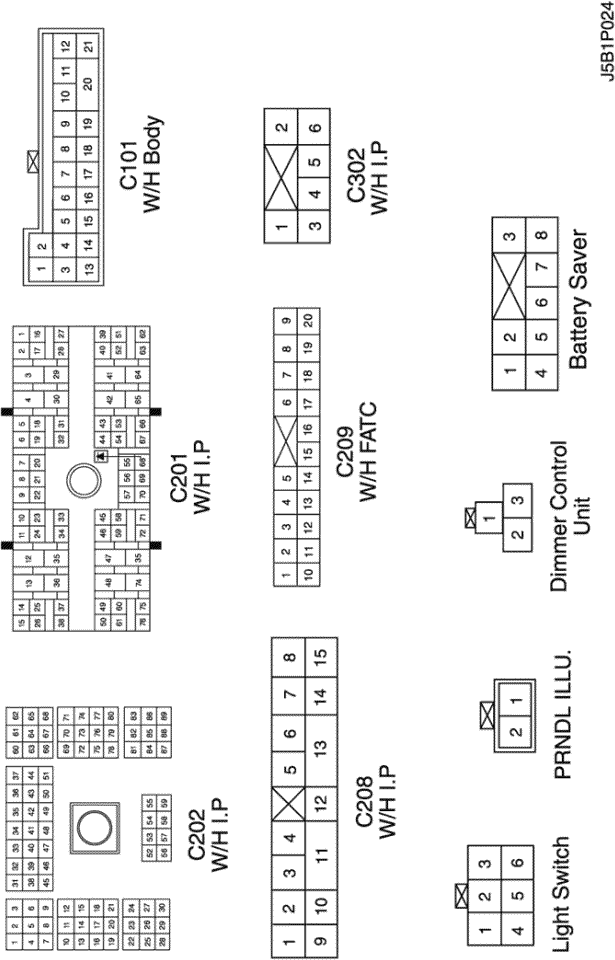

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S203
S204

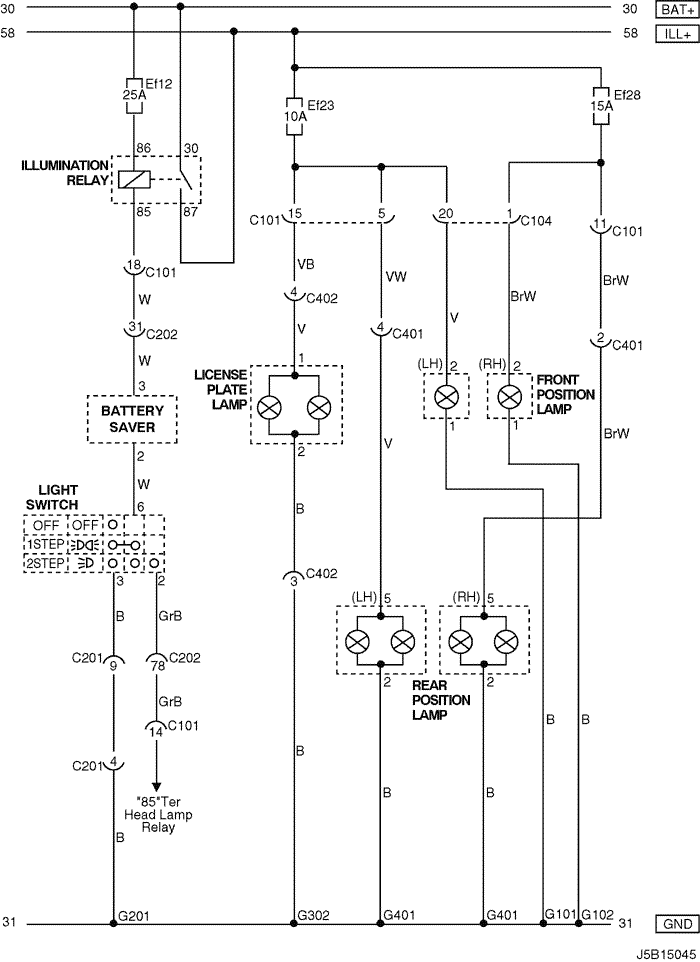

3) LAMP (LICENSE PLATE & FRONT/REAR POSITION) CIRCUIT : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C104 (24 Pin, White) | Front – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C401 (8 Pin, White) | Trunk – Body | Inside Right Trunk Side Cover |
| C402 (6 Pin, White) | Trunk LID – Body | Inside Right Trunk Side Cover |
| G101 | Front | Behind Left Head Lamp |
| G102 | Front | Behind Right Head Lamp |
| G201 | I.P | Left I.P Fuse Block |
| G302 | Body | Below Left C Pillar |
| G401 | Trunk | Center Trunk Lower Back Panel |

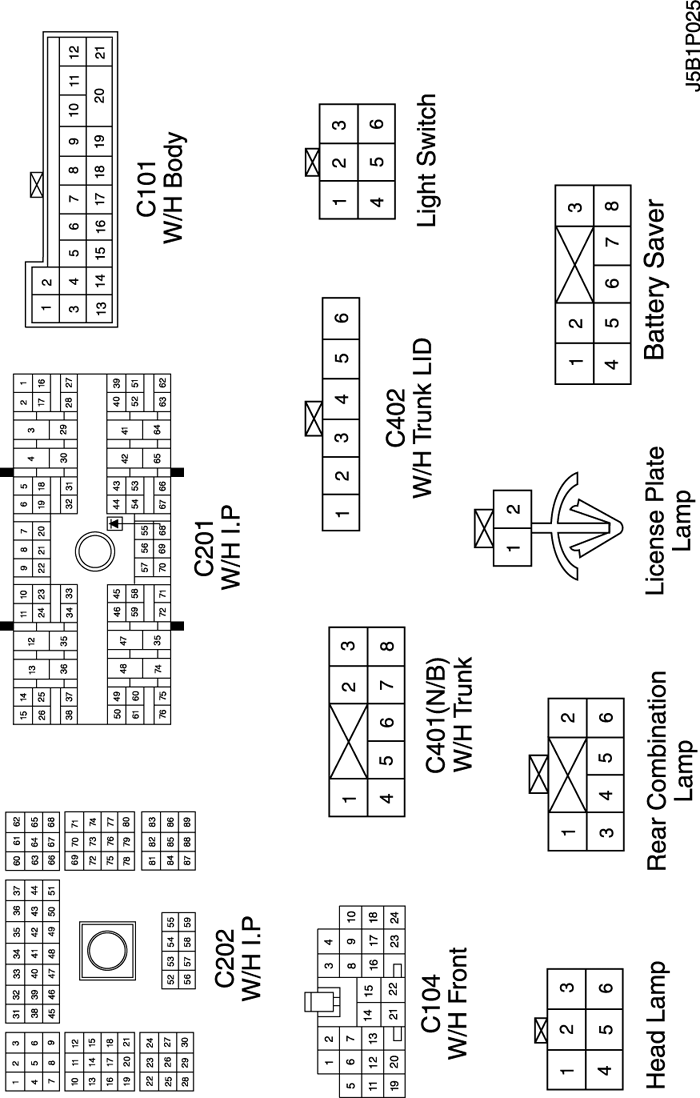

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

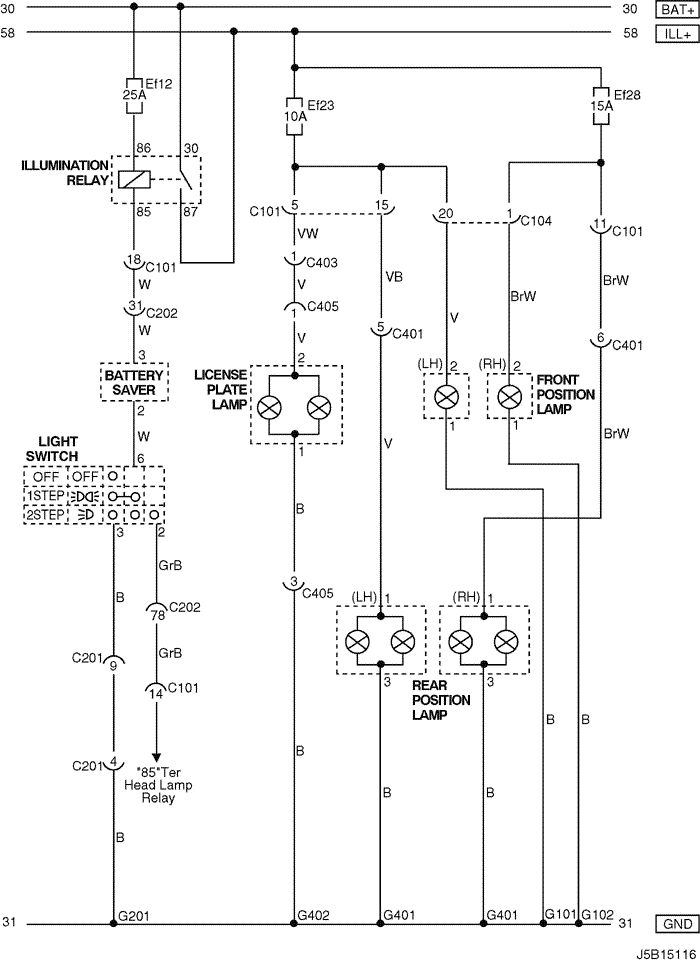

4) LAMP (LICENSE PLATE & FRONT/REAR POSITION) CIRCUIT : HATCH BACK
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C104 (24 Pin, White) | Front – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C401 (6 Pin, White) | Trunk - Body | Inside Right Trunk Side Cover |
| C403 (6 Pin, White) | T/Gate. EXT. – Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. – T/Gate | Beside Left Rear Wiper Motor |
| G101 | Front | Behind Left Head Lamp |
| G102 | Front | Behind Right Head Lamp |
| G201 | I.P | Left I.P Fuse Block |
| G401 | Trunk | Center Trunk Lower Back Panel |
| G402 | T/Gate. EXT. | Inside Driver C Pillar |

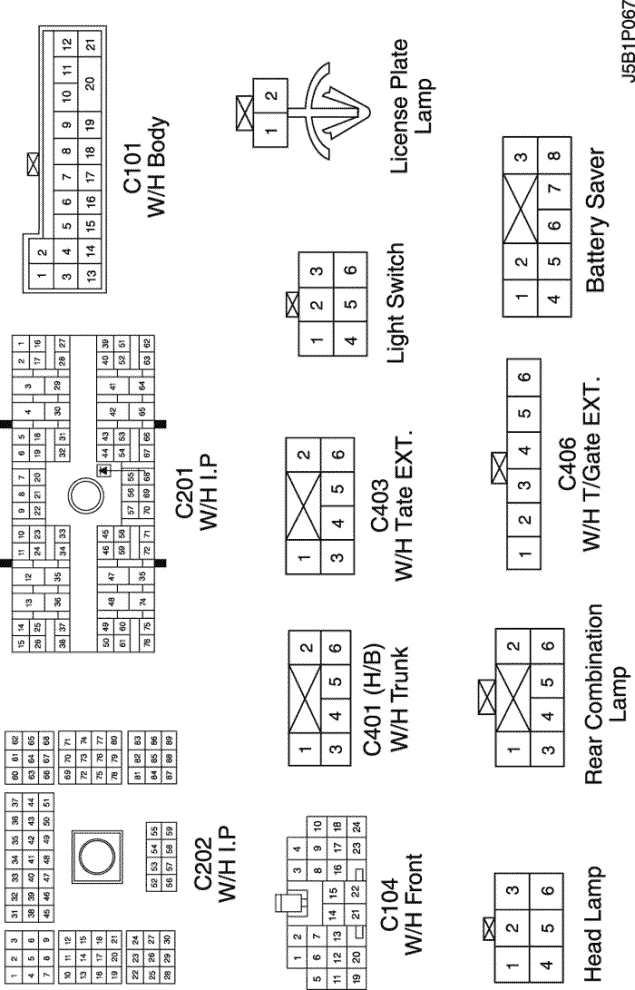

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

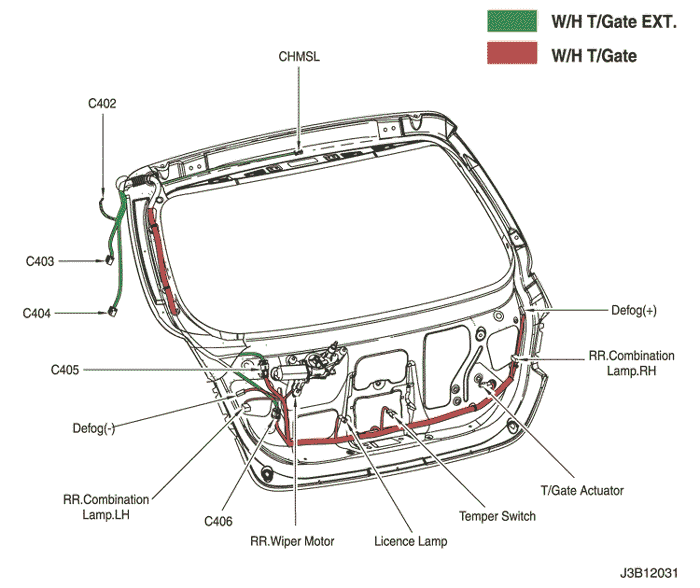

c. POSITION OF CONNECTORS AND GROUNDS

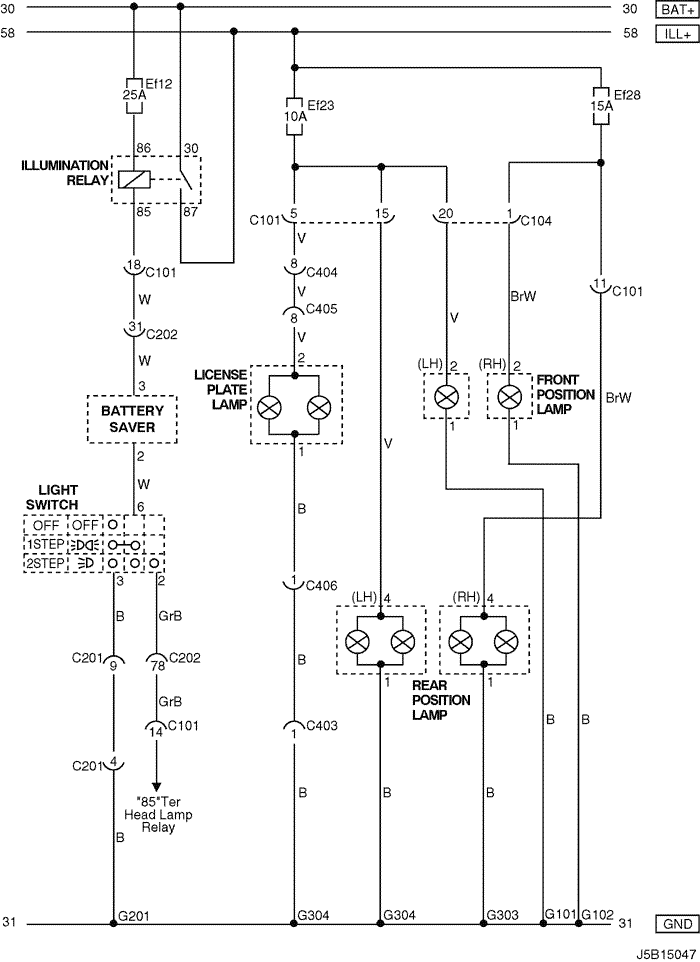

5) LAMP (LICENSE PLATE & FRONT/REAR POSITION) CIRCUIT : STATION WAGON
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C104 (24 Pin, White) | Front – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C403 (4 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C404 (8 Pin, White) | T/Gate. EXT. - Body | Inside Left C Pillar |
| C405 (8 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| C406 (4 Pin, White) | T/Gate. EXT. - T/Gate | Beside Left Rear Wiper Motor |
| G101 | Front | Behind Left Head Lamp |
| G102 | Front | Behind Right Head Lamp |
| G201 | I.P | Left I.P Fuse Block |
| G303 | Body | Below Right Rear Combination Lamp |
| G304 | Body | Below Left Rear Combination Lamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
