25. CLUSTER

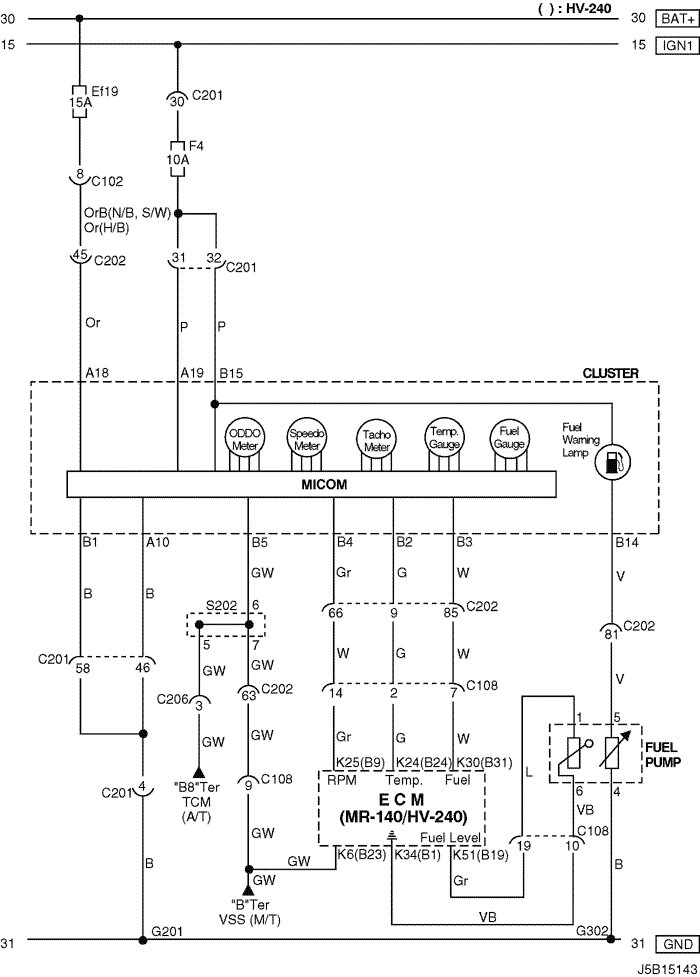

1) TEMPERATURE GAUGE, TACHOMETER, FUEL GAUGE, ODDOMETER, SPEEDOMETER & FUEL WARNING LAMP CIRCUIT: MR-140/HV-240
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| S202 (Black) | I.P | Behind Cluster |
| G201 | I.P | Left I.P Fuse Block |
| G302 | Body | Below Left C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202

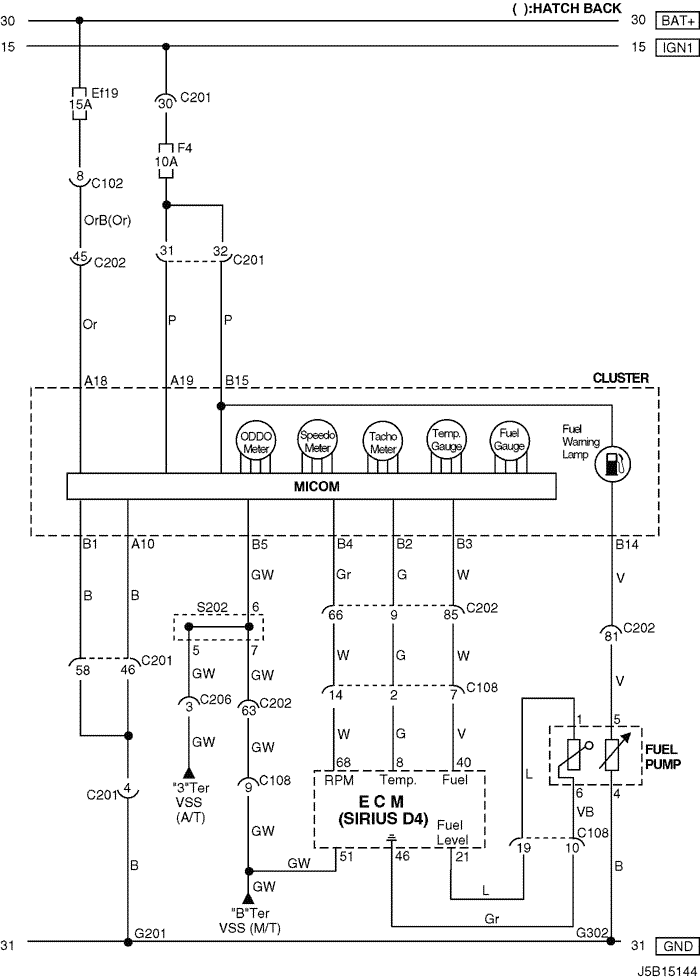

2) TEMPERATURE GAUGE, TACHOMETER, FUEL GAUGE, ODDOMETER, SPEEDOMETER & FUEL WARNING LAMP CIRCUIT: SIRIUS D4
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S202 (Black) | I.P | Behind Cluster |
| G201 | I.P | Left I.P Fuse Block |
| G302 | Body | Below Left C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
3) WARNING (MIL, ABS, TCS, PARKING BRAKE & CHARGING) LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C110 (12 Pin, White) | ABS – Body | Below Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G204 | Body | Below Left CO-Driver Leg Room |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)

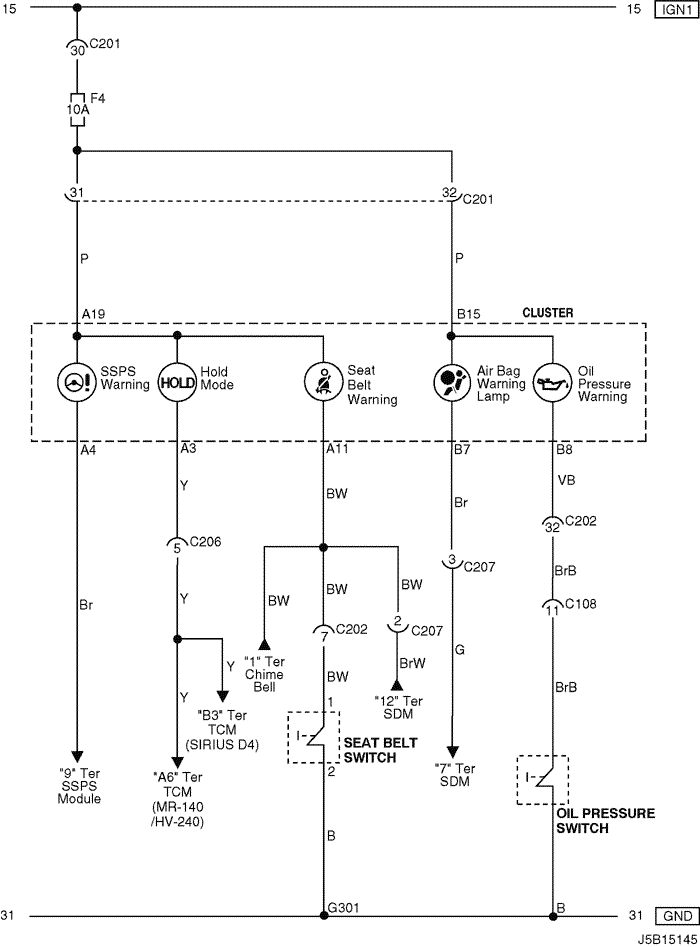

4) WARNING (SSPS, AIR BAG, OIL PRESSURE & SEAT BELT) LAMP & HOLD MODE LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| C207 (6 Pin, White) | Air Bag – I.P | Upper Left Driver Leg Room |
| G301 | Body | Below Driver Cross Member Floor Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

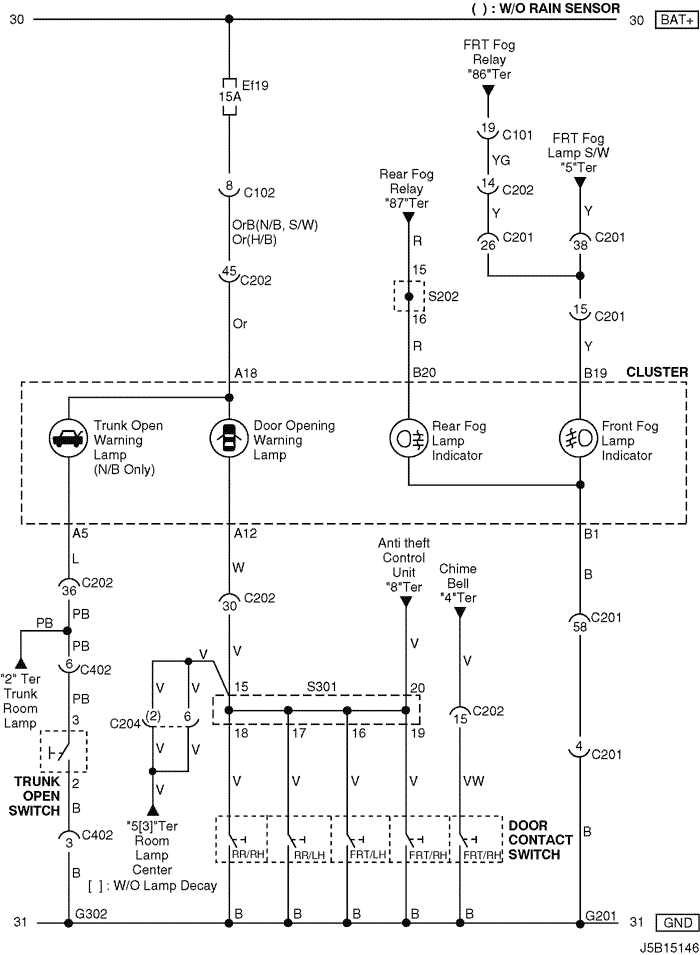

5) INDICATOR (FRONT & REAR FOG) LAMP & DOOR OPENING WARNING LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C204 (8 Pin, White) | Roof – Body (W/O Rain Sensor) | Left CO-Driver Leg Room |
| C402 (6 Pin, White) | Trunk LID - Body | Inside Right Trunk Side Cover |
| S202 (Black) | I.P | Behind Cluster |
| S301 (Blue) | Body | Left CO-Driver Leg Room |
| G201 | I.P | Left I.P Fuse Block |
| G302 | Body | Below Left C Pillar |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
S301 (NOTCH BACK)
S301 (HATCH BACK)
S301 (STATION WAGON)

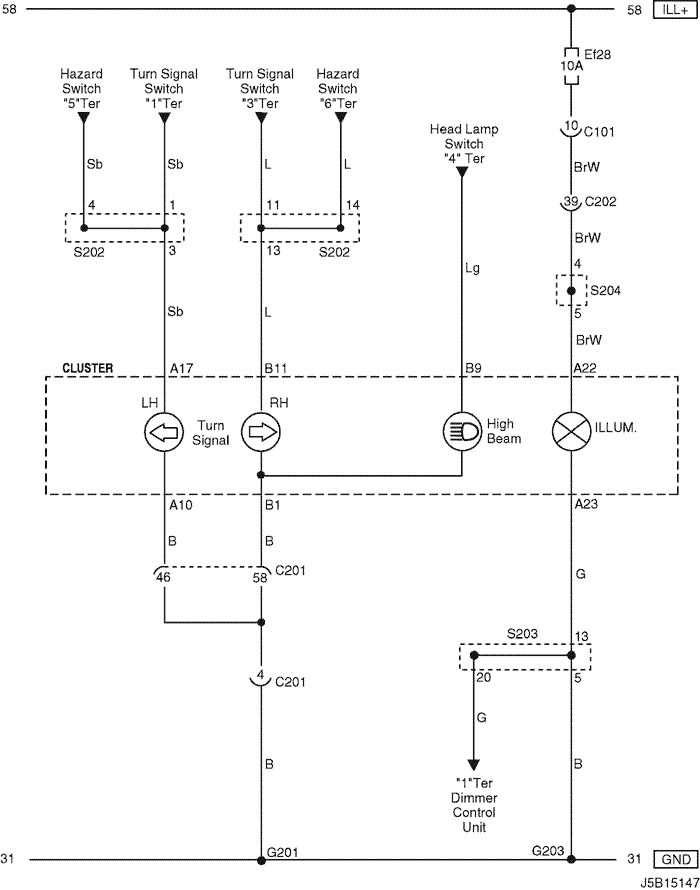

6) INDICATOR (TURN SIGNAL, HIGH BEAM & HAZARD) LAMP & ILLUMINATION LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S202 (Black) | I.P | Behind Cluster |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G201 | I.P | Left I.P Fuse Block |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
S203
S204
sm
