5. TCM (TRANSMISSION CONTROL MODULE) : MR-140/HV-240
1) POWER SUPPLY, GROUND, PNP SWITCH, BRAKE SWITCH & SOLENOID VALVE CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| S205 (Orange) | TCM | Upper Driver Leg Room |
| G201 | I.P | Left I.P Fuse Block |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S205

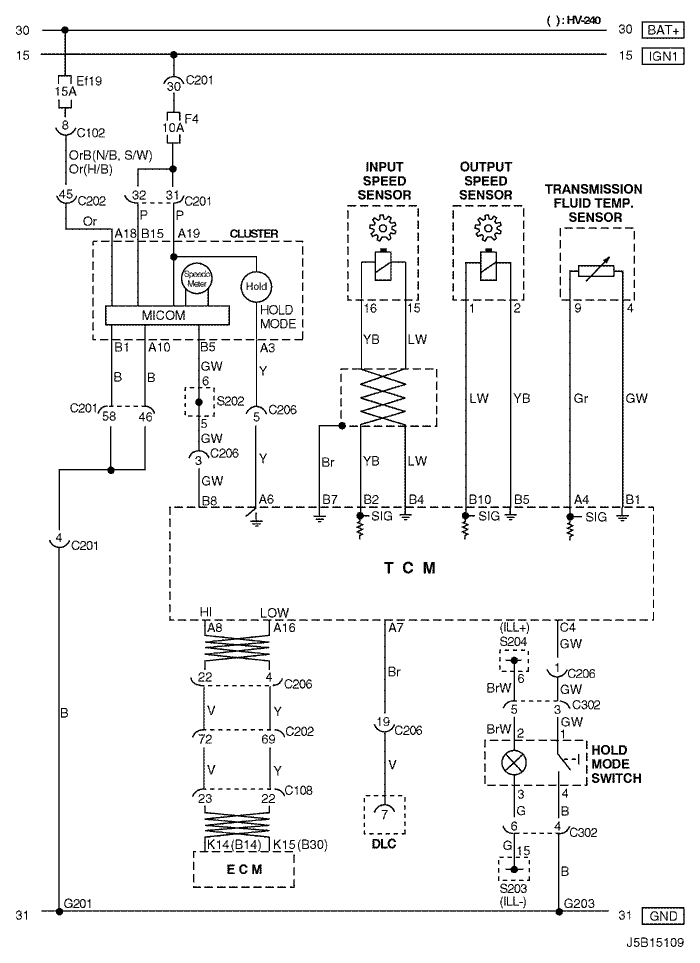

2) SENSOR (INPUT SPEED, OUTPUT SPEED & TRANSMISSION FLUID TEMP.), CLUSTER, DLC, ECM & HOLD MODE SWITCH CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (11 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| C302 (6 Pin, White) | I.P – Console | Below Console Box |
| S202 (Black) | I.P | Behind Cluster |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G201 | I.P | Left I.P Fuse Block |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
S203
S204
3) PNP SWITCH & CLUSTER CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C206 (22 Pin, White) | I.P – TCM | Upper Driver Leg Room |
| S205 (Orange) | TCM | Upper Driver Leg Room |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S205
