РАЗДЕЛ 3

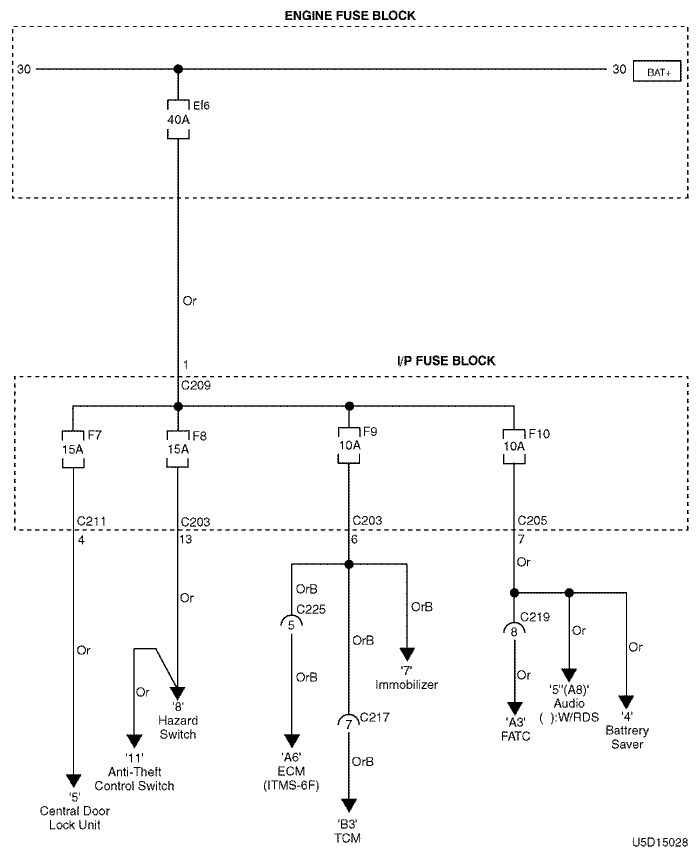

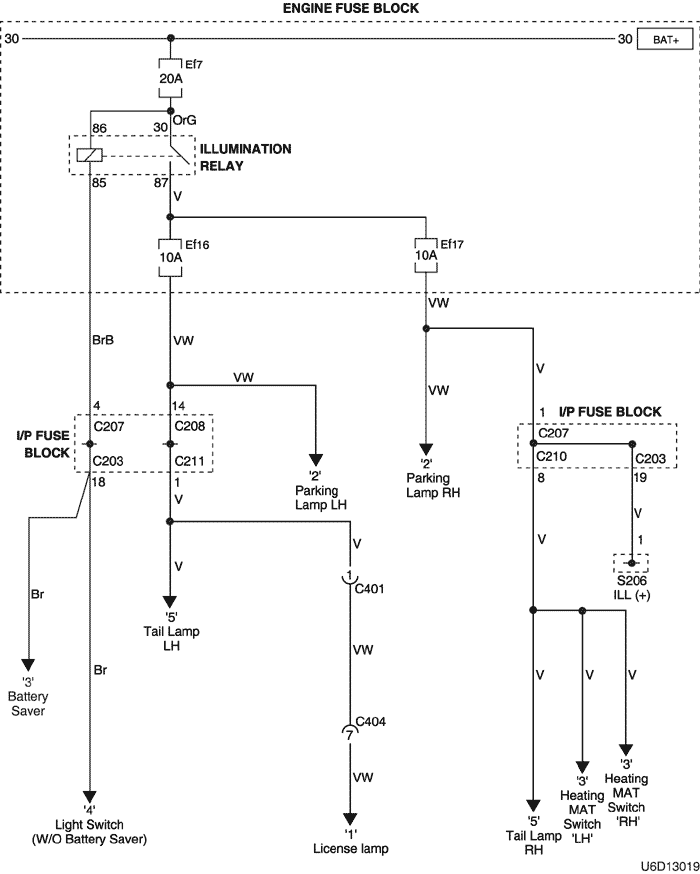

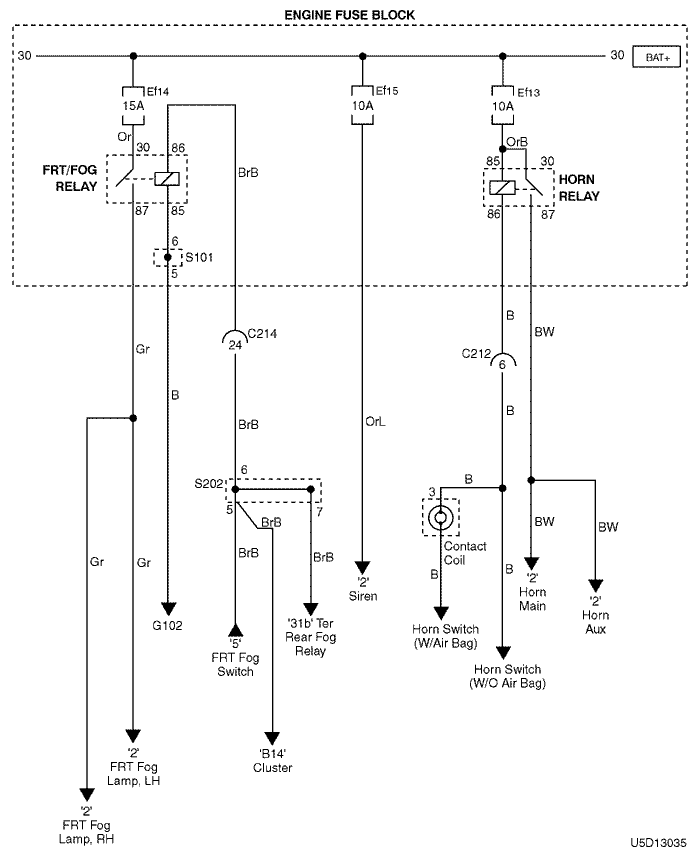

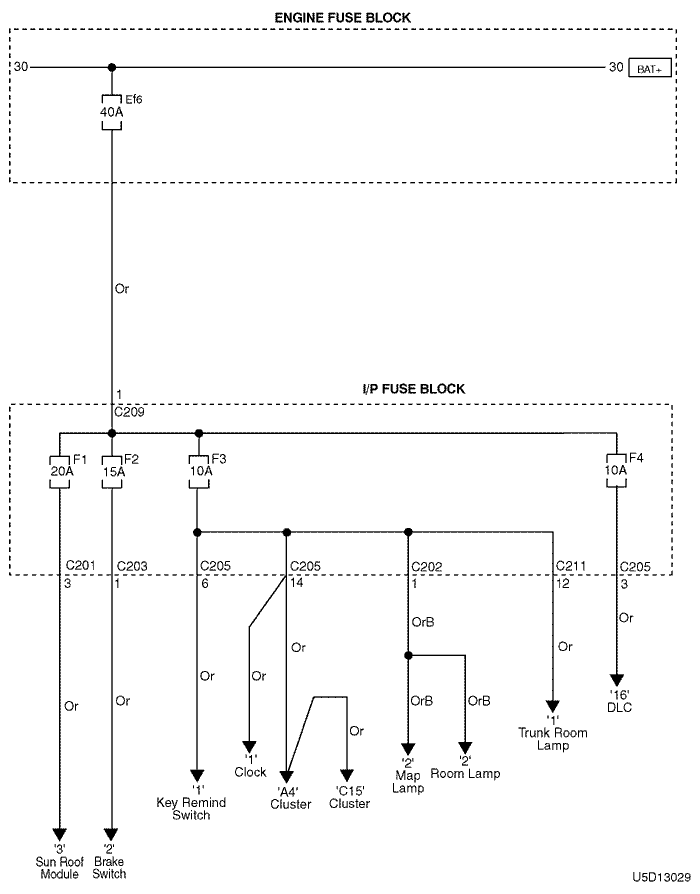

WIRING DIAGRAM FOR POWER SUPPLIES
1. IGNITION SWITCH CIRCUIT

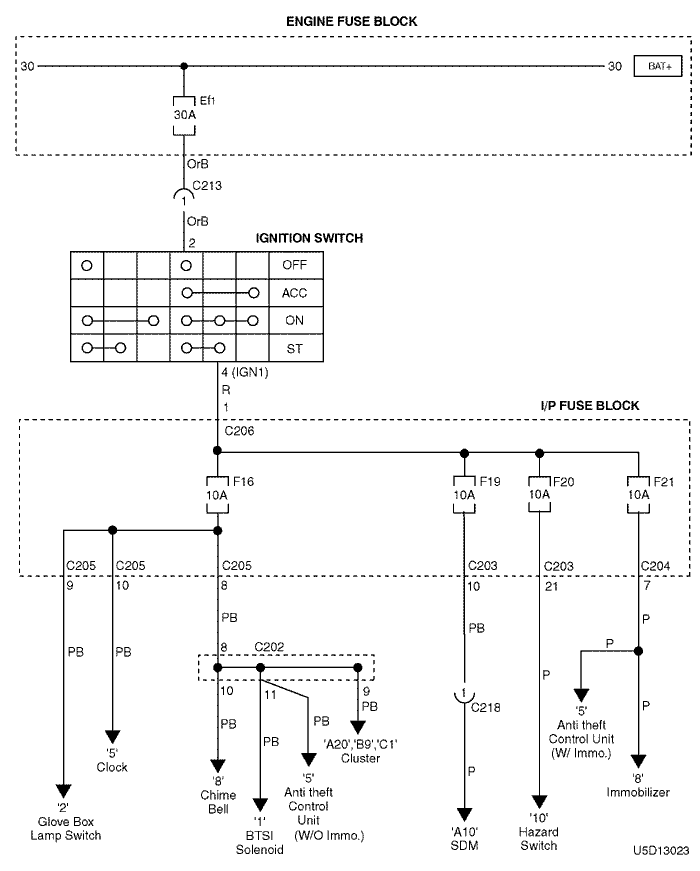

1) 15 TER IGN 1 POWER SUPPLY CIRCUIT (I/P FUSE BLOCK)

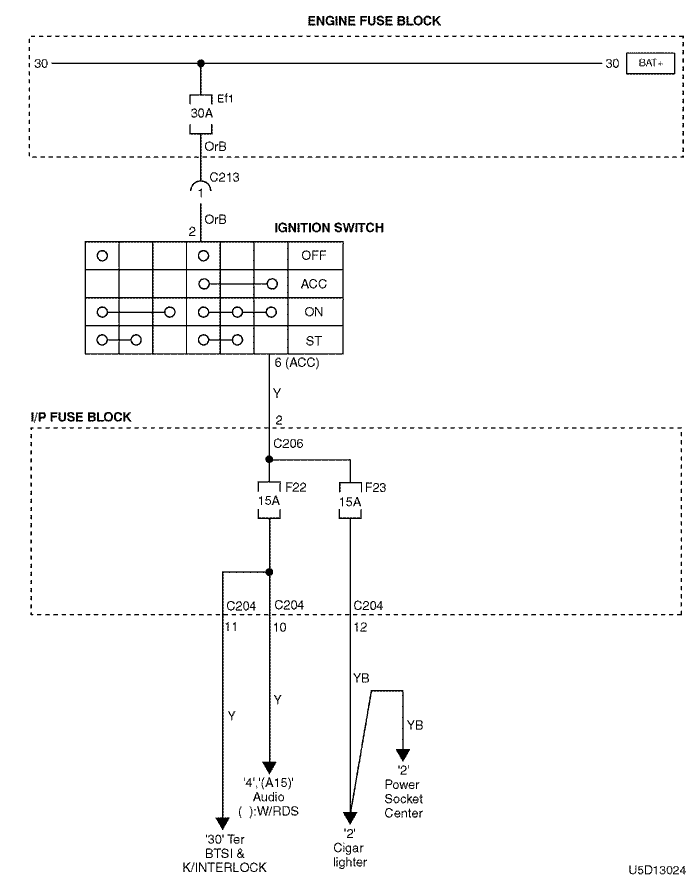

2) 15C ACC POWER SUPPLY CIRCUIT (I/P FUSE BLOCK)

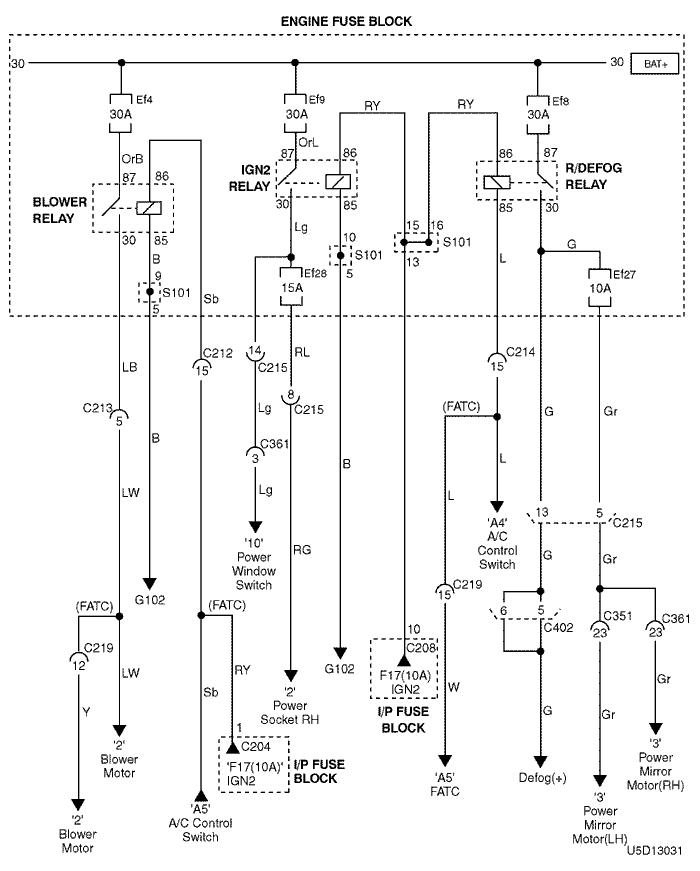

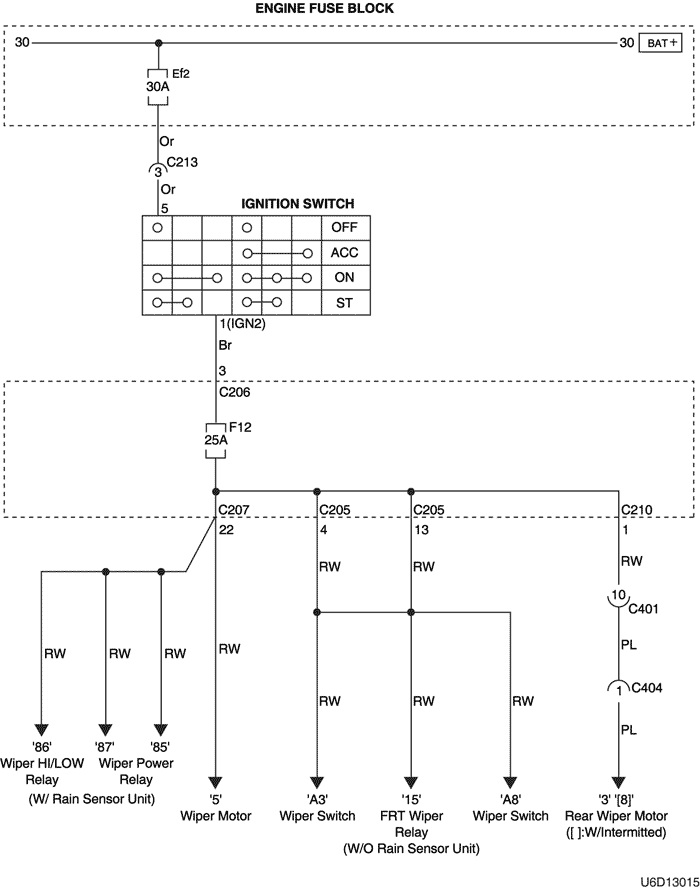

3) 15A IGN 2 POWER SUPPLY CIRCUIT (I/P FUSE BLOCK)

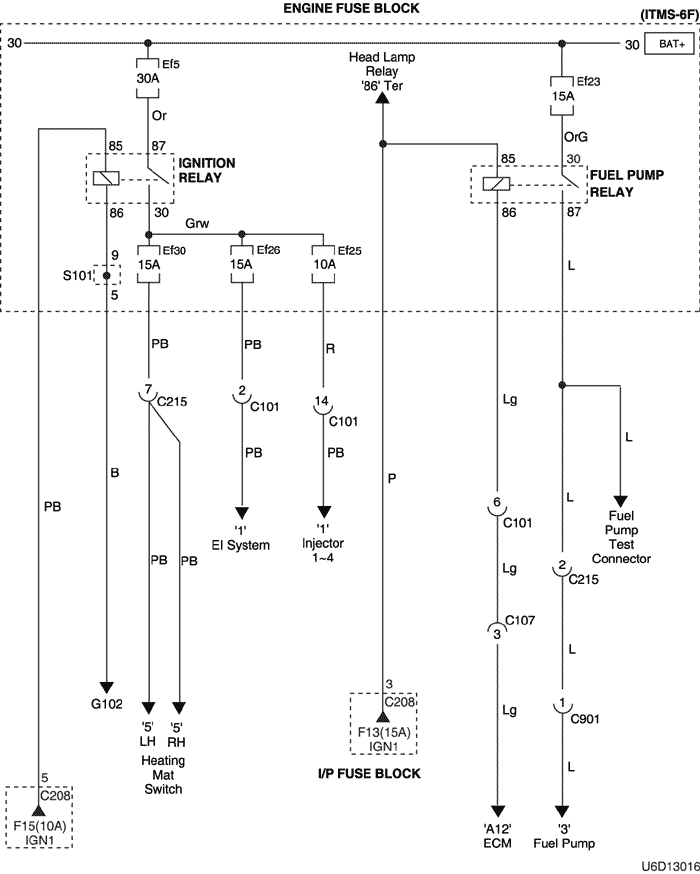

2. ENGINE FUSE BLOCK & RELAY CIRUIT
