11. POWER WINDOW SYSTEM

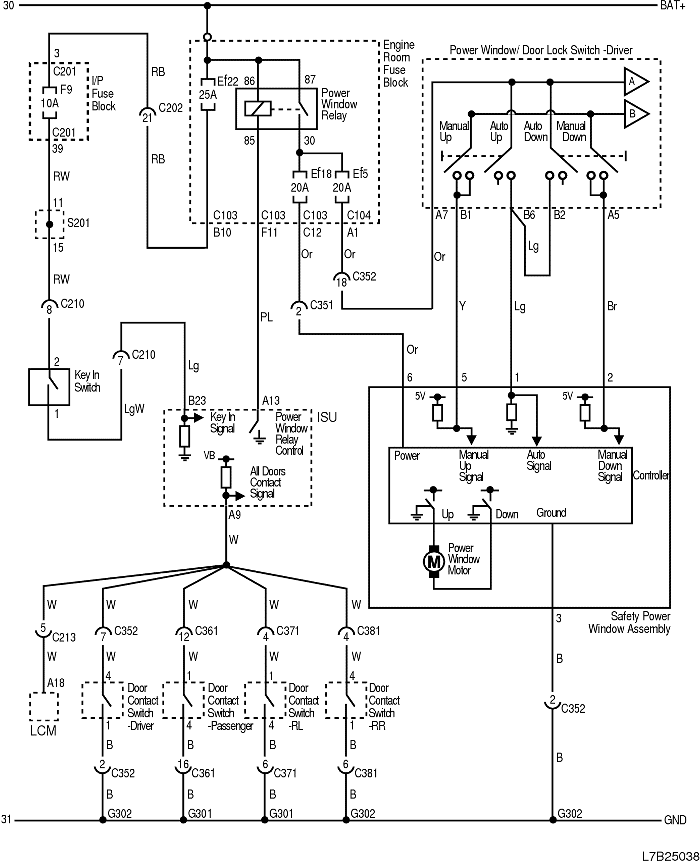

1) DRIVER SAFETY POWER WINDOW CIRCUIT
а. ИНФОРМАЦИЯ О РАЗЪЁМЕ
№ РАЗЪЁМА
(№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ |
ПОЛОЖЕНИЕ РАЗЪЁМА |
| C103 (68 Pin, White) |
Body - Engine room fuse block |
Engine room fuse block |
| C104 (8 Pin, Gray) |
Body - Engine room fuse block |
Engine room fuse block |
| C201 (76 Pin, Black) |
IP - I/P fuse block |
I/P fuse block |
| C202 (23 Pin, White) |
IP - Body |
Connector box at the bottom of right A pillar |
| C210 (10 Pin, White) |
IP - Lock Housing |
Near the center of steering column |
| C213 (23 Pin, White) |
IP - Body |
Connector box at the bottom of left A pillarr |
| C351 (18 Pin, Gray) |
Body - Driver Door |
At the bottom of driver A pillar |
| C352 (18 Pin, White) |
Body - Driver Door |
At the bottom of driver A pillar |
| C361 (18 Pin, Gray) |
Body - Passenger Door |
At the bottom of passenger A pillar |
| C371 (21 Pin, White) |
Body - Rear Left Door |
At the bottom of left B pillar |
| C381 (21 Pin, White) |
Body - Rear Right Door |
At the bottom of right B pillar |
| G301 |
Body |
On the left crossmember of front floor panel |
| G302 |
Body |
On the ringht crossmember of front floor panel |
б. УСЛОВНОЕ ОБОЗНАЧЕНИЕ & И НАХОЖДЕНИЕ НОМЕРА КОНТАКТА
в. РАСПОЛОЖЕНИЕ РАЗЪЁМОВ И СОЕДИНЕНИЙ МАССЫ
г. КОНТАКТНАЯ КОЛОДКА
S201
2) PASSENGER AND REAR POWER WINDOW CIRCUIT
а. ИНФОРМАЦИЯ О РАЗЪЁМЕ
№ РАЗЪЁМА
(№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ |
ПОЛОЖЕНИЕ РАЗЪЁМА |
| C351 (18 Pin, Gray) |
Body - Driver Door |
At the bottom of driver A pillar |
| C352 (18 Pin, White) |
Body - Driver Door |
At the bottom of driver A pillar |
| C361 (18 Pin, Gray) |
Body - Passenger Door |
At the bottom of passenger A pillar |
| C371 (21 Pin, White) |
Body - Rear Left Door |
At the bottom of left B pillar |
| C381 (21 Pin, White) |
Body - Rear Right Door |
At the bottom of right B pillar |
| G301 |
Body |
On the left crossmember of front floor panel |
| G302 |
Body |
On the ringht crossmember of front floor panel |
б. УСЛОВНОЕ ОБОЗНАЧЕНИЕ & И НАХОЖДЕНИЕ НОМЕРА КОНТАКТА
в. РАСПОЛОЖЕНИЕ РАЗЪЁМОВ И СОЕДИНЕНИЙ МАССЫ
