Epica |
||||||||
|
|
|||||||

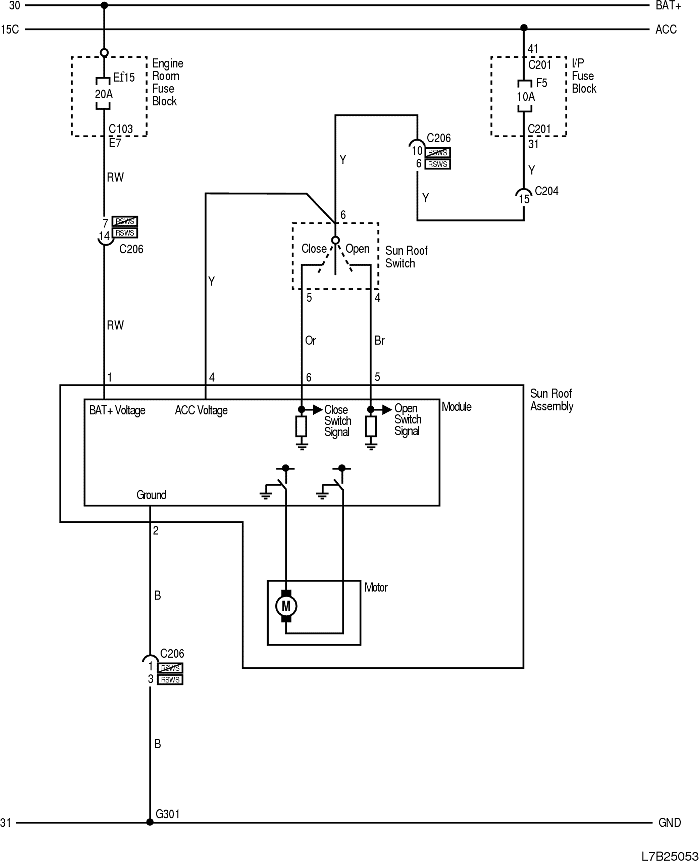

| № РАЗЪЁМА (№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ | ПОЛОЖЕНИЕ РАЗЪЁМА |
| C103 (68 Pin, White) | Body - Engine room fuse block | Engine room fuse block |
| C201 (76 Pin, Black) | IP - I/P fuse block | I/P fuse block |
| C204 (22 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C206 (10 Pin, White) | Roof - Body | Near the center of driver A pillar |
| C206 (18 Pin, White) | Roof - Body | Near the center of driver A pillar |
| G301 | Body | On the left crossmember of front floor panel |
 |
 |
