Epica |
||||||||
|
|
|||||||
Connector Number
|
Terminal Number
|
Color
|
Connecting Wiring Harness
|
Connecting Position
|
|

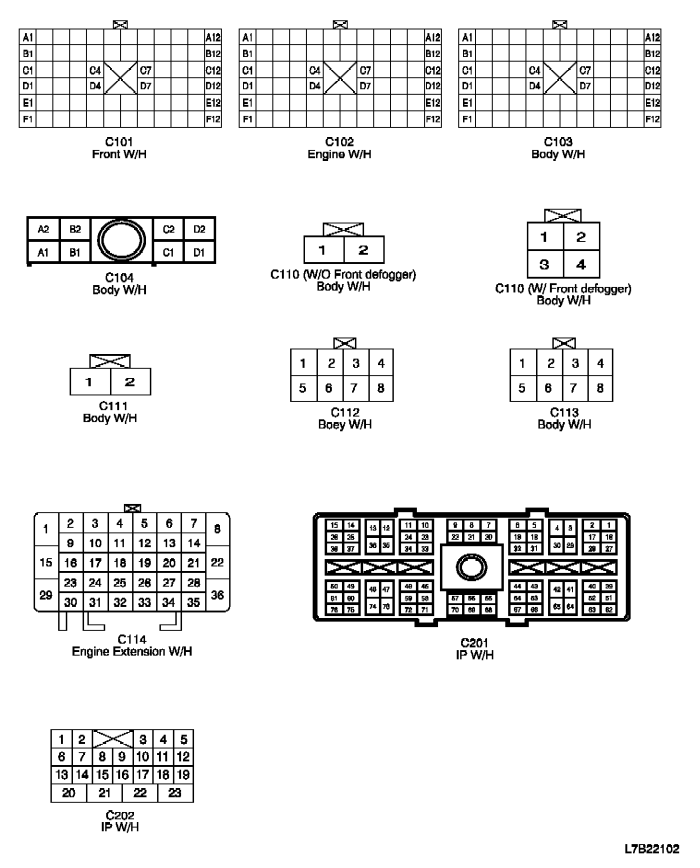

C101
|
68
|
Black
|
Front - Engine room fuse block
|
Engine room fuse block
|
|
C102
|
68
|
Gray
|
Engine - Engine room fuse block
|
Engine room fuse block
|
|
C103
|
68
|
White
|
Body - Engine room fuse block
|
Engine room fuse block
|
|
C104
|
8
|
Gray
|
Body - Engine room fuse block
|
Engine room fuse block
|
|
C110
|
2
|
Gray
|
Body - Body Sub
|
Beside wiper motor in cowl panel
|
|
4
|
Gray
|
Body - Body Sub
|
Beside wiper motor in cowl panel
|
|
|
C111
|
2
|
Gray
|
Body - Body Sub
|
Beside wiper motor in cowl panel
|
|
C112
|
8
|
Gray
|
Body - Body Sub
|
Beside wiper motor in cowl panel
|
|
C113
|
8
|
Gray
|
Body - Body Sub
|
Beside wiper motor in cowl panel
|
|
C114
|
36
|
Black
|
Engine Extension - Engine
|
Behind engine room fuse block
|
|
C201
|
76
|
Black
|
IP - I/P fuse block
|
I/P fuse block
|
|
C202
|
23
|
White
|
IP - Body
|
Connector box at the bottom of right A pillar
|
|

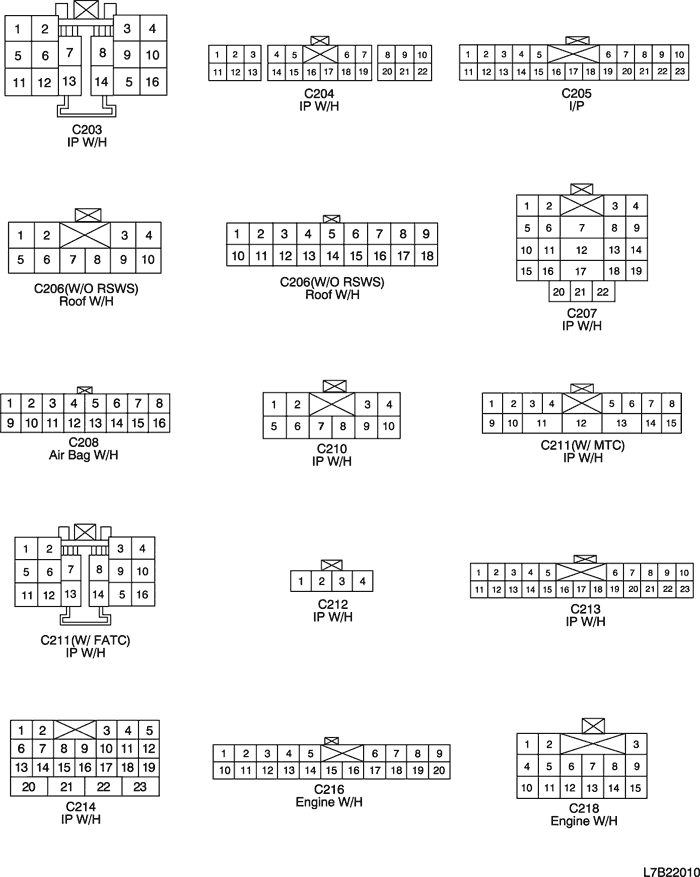

C203
|
16
|
Yellow
|
IP - Body
|
Connector box at the bottom of left A pillar
|
|
C204
|
22
|
White
|
IP - Body
|
Connector box at the bottom of right A pillar
|
|
C205
|
23
|
White
|
IP - Body
|
Connector box at the bottom of right A pillar
|
|
C206
|
10
|
White
|
Roof - Body
|
Near the center of left A pillar
|
|
18
|
White
|
Roof - Body
|
Near the center of left A pillar
|
|
|
C207
|
22
|
White
|
IP - TCM
|
Behind driver's knee bolster
|
|
C208
|
16
|
White
|
Air Bag - IP
|
Behind audio in the center of I/P
|
|
C210
|
10
|
White
|
IP - Lock Housing
|
Near the center of steering column
|
|
C211
|
15
|
White
|
IP - A/C
|
Behind the glove box
|
|
16
|
White
|
IP - A/C
|
Behind the glove box
|
|
|
C212
|
4
|
White
|
IP - Ashtray
|
Behind the ashtray
|
|
C213
|
23
|
White
|
IP - Body
|
Connector box at the bottom of left A pillarr
|
|
C214
|
23
|
White
|
IP - Body
|
Connector box at the bottom of left A pillarr
|
|
C216
|
20
|
White
|
Engine - IP
|
Near the Connector box at the bottom of left A pillar
|
|
C218
|
15
|
White
|
Engine - Body
|
Connector box at the bottom of left A pillarr
|
|

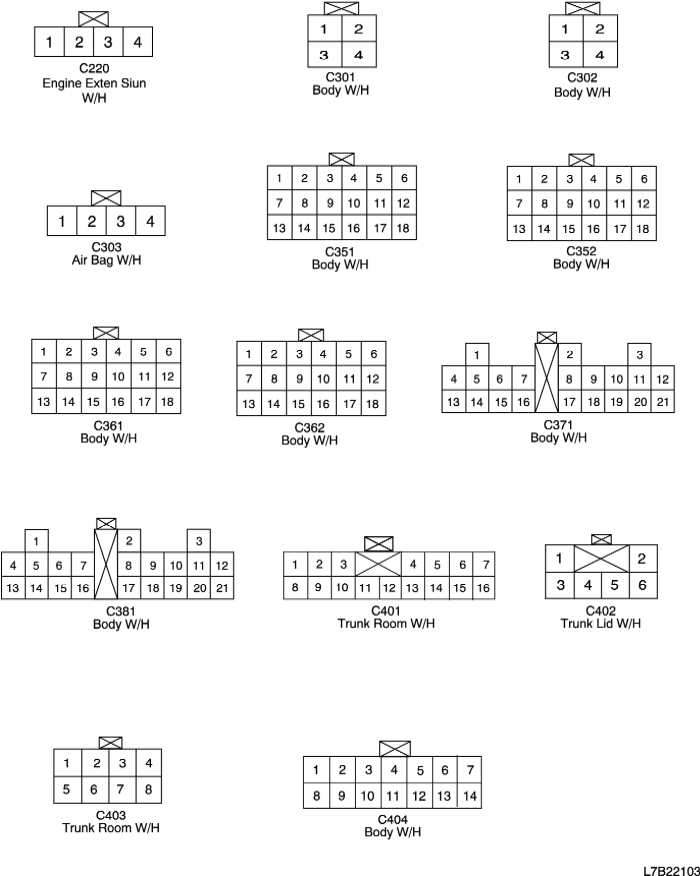

C220
|
4
|
White
|
Engine Extension - Body
|
Connector box at the bottom of right A pillarr
|
|
C301
|
4
|
Colorless
|
Body - Driver Power Seat
|
Under the driver seat cushion
|
|
C302
|
4
|
Colorless
|
Body - Passenger Power Seat
|
Under the passenger seat cushion
|
|
C303
|
4
|
White
|
Air Bag - Body
|
On the left crossmember of front floor panel
|
|
C351
|
18
|
Gray
|
Body - Driver Door
|
At the bottom of driver A pillar
|
|
C352
|
18
|
White
|
Body - Driver Door
|
At the bottom of driver A pillar
|
|
C361
|
18
|
Gray
|
Body - Passenger Door
|
At the bottom of passenger A pillar
|
|
C362
|
18
|
White
|
Body - Passenger Door
|
At the bottom of passenger A pillar
|
|
C371
|
21
|
White
|
Body - Rear Left Door
|
At the bottom of left B pillar
|
|
C381
|
21
|
White
|
Body - Rear Right Door
|
At the bottom of right B pillar
|
|
C401
|
16
|
White
|
Trunk Room - Body
|
On the left side panel in trunk room
|
|
C402
|
6
|
White
|
Trunk Lid - Body
|
On the left side panel in trunk room
|
|
C403
|
8
|
White
|
Trunk Room - Rear Bumper
|
Behind the center of rear bumper
|
|
C404
|
12
|
White
|
Body - Fuel Pump
|
Under the center of rear crossmember
|

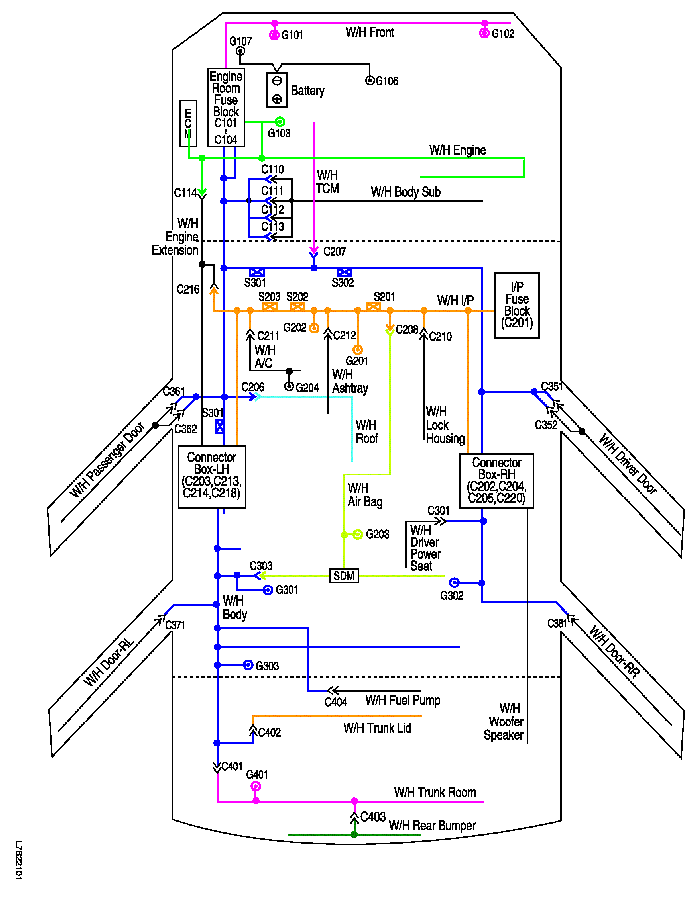

Ground Number
|
Wiring Harness
|
Ground Position
|
|
G101
|
Front
|
Behind left head lamp
|
|
G102
|
Front
|
Behind right head lamp
|
|
G103
|
Engine
|
Between engine room fuse block and battery
|
|
G105
|
Body
|
Below EBCM
|
|
G106
|
Battery
|
Front and center of engine cylinder block
|
|
G107
|
Battery
|
Between engine room fuse block and battery
|
|
G201
|
I/P
|
Near diagnostic link connector
|
|
G202
|
I/P
|
Left bottom of I/P center molding
|
|
G203
|
Air Bag
|
On front floor panel near SDM
|
|
G204
|
A/C
|
Right bottom of IP center molding
|
|
G301
|
Body
|
On the left crossmember of front floor panel
|
|
G302
|
Body
|
On the ringht crossmember of front floor panel
|
|
G303
|
Body
|
Near back shelf of left C pillar
|
|
G401
|
Trunk Room
|
Left side panel of trunk room
|
Splice Pack Number
|
Wiring Harness
|
Splice Pack Position
|
|
S201
|
I/P
|
Near diagnostic link connector
|
|
S202
|
I/P
|
At the right of IP center molding
|
|
S203
|
I/P
|
Behind audio
|
|
S301
|
Body
|
At the bottom of the left A pillar
|
|
S302
|
Body
|
At the dash panel near brake pedal
|
 |
 |
