21. GLASS
1) GLASS AND OUTSIDE REAR VIEW (OSRVM) DEFOGGER CIRCUIT

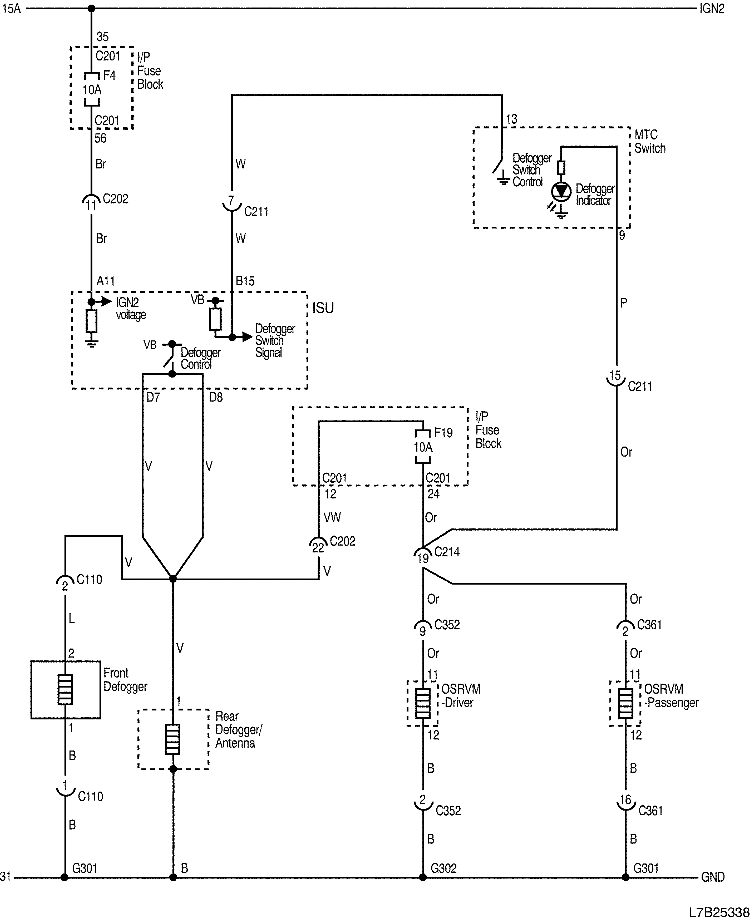

1-1) MANUAL TEMPERATURE CONTROL (MTC)
а. ИНФОРМАЦИЯ О РАЗЪЁМЕ
№ РАЗЪЁМА
(№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ |
ПОЛОЖЕНИЕ РАЗЪЁМА |
| C110 (2 Pin, Gray) |
Body - Body Sub |
Beside wiper motor in cowl panel |
| C110 (4 Pin, Gray) |
Body - Body Sub |
Beside wiper motor in cowl panel |
| C201 (76 Pin, Black) |
IP - I/P fuse block |
I/P fuse block |
| C202 (23 Pin, White) |
IP - Body |
Connector box at the bottom of right A pillar |
| C203 (16 Pin, Yellow) |
IP - Body |
Connector box at the bottom of left A pillar |
| C211 (15 Pin, White) |
IP - A/C |
Behind the glove box |
| C214 (23 Pin, White) |
IP - Body |
Connector box at the bottom of left A pillarr |
| C352 (18 Pin, White) |
Body - Driver Door |
At the bottom of driver A pillar |
| C361 (18 Pin, Gray) |
Body - Passenger Door |
At the bottom of passenger A pillar |
| G301 |
Body |
On the left crossmember of front floor panel |
| G302 |
Body |
On the ringht crossmember of front floor panel |
б. УСЛОВНОЕ ОБОЗНАЧЕНИЕ & И НАХОЖДЕНИЕ НОМЕРА КОНТАКТА
в. РАСПОЛОЖЕНИЕ РАЗЪЁМОВ И СОЕДИНЕНИЙ МАССЫ

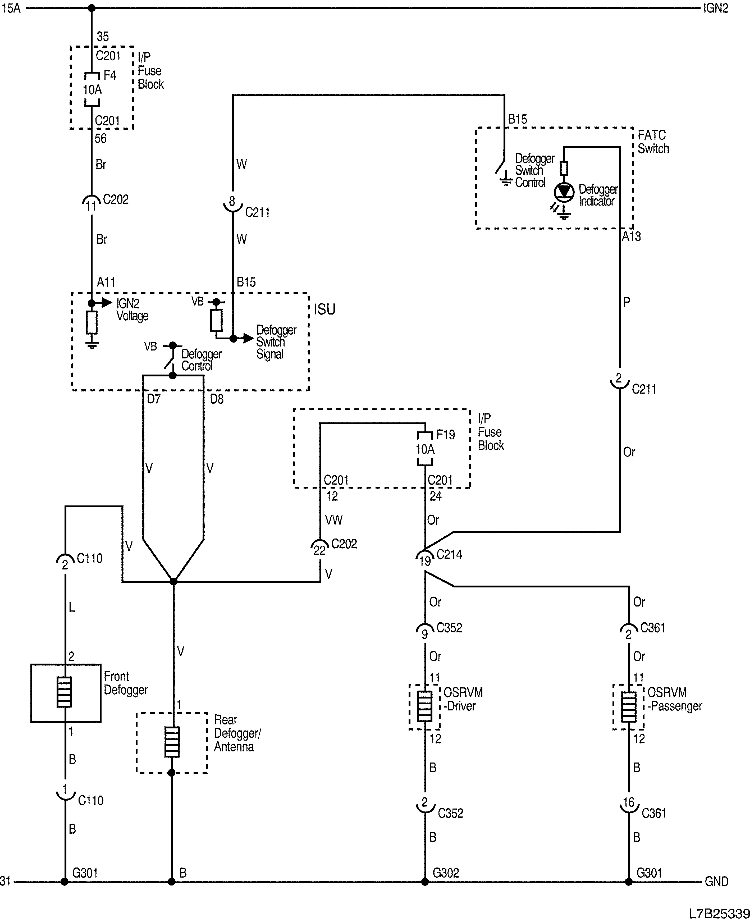

1-2) FULL AUTOMATIC TEMPERATURE CONTROL (FATC)
а. ИНФОРМАЦИЯ О РАЗЪЁМЕ
№ РАЗЪЁМА
(№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ |
ПОЛОЖЕНИЕ РАЗЪЁМА |
| C110 (2 Pin, Gray) |
Body - Body Sub |
Beside wiper motor in cowl panel |
| C110 (4 Pin, Gray) |
Body - Body Sub |
Beside wiper motor in cowl panel |
| C201 (76 Pin, Black) |
IP - I/P fuse block |
I/P fuse block |
| C202 (23 Pin, White) |
IP - Body |
Connector box at the bottom of right A pillar |
| C203 (16 Pin, Yellow) |
IP - Body |
Connector box at the bottom of left A pillar |
| C211 (16 Pin, White) |
IP - A/C |
Behind the glove box |
| C214 (23 Pin, White) |
IP - Body |
Connector box at the bottom of left A pillarr |
| C352 (18 Pin, White) |
Body - Driver Door |
At the bottom of driver A pillar |
| C361 (18 Pin, Gray) |
Body - Passenger Door |
At the bottom of passenger A pillar |
| G301 |
Body |
On the left crossmember of front floor panel |
| G302 |
Body |
On the ringht crossmember of front floor panel |
б. УСЛОВНОЕ ОБОЗНАЧЕНИЕ & И НАХОЖДЕНИЕ НОМЕРА КОНТАКТА
в. РАСПОЛОЖЕНИЕ РАЗЪЁМОВ И СОЕДИНЕНИЙ МАССЫ

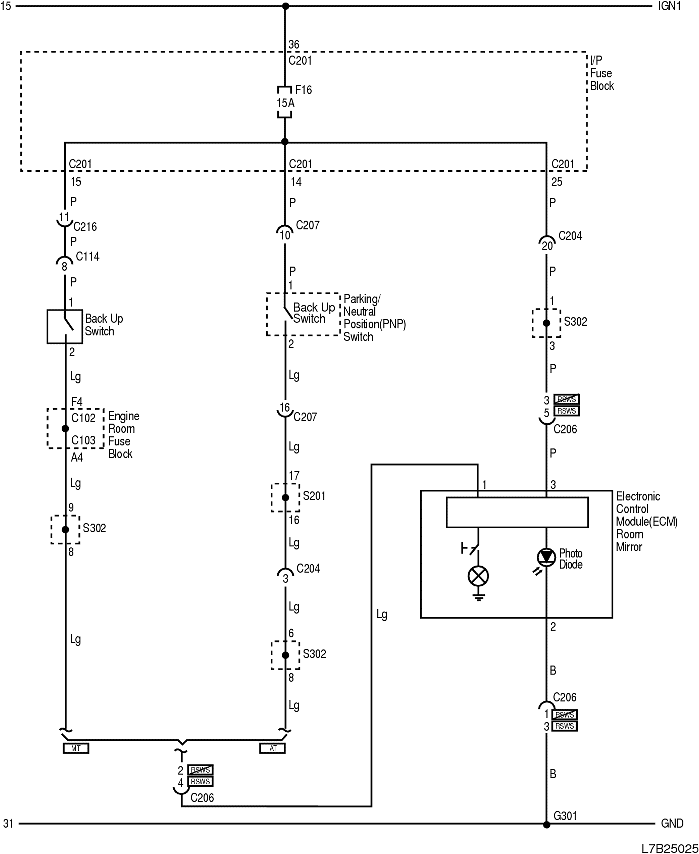

2) ROOM MIRROR CIRCUIT
а. ИНФОРМАЦИЯ О РАЗЪЁМЕ
№ РАЗЪЁМА
(№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ |
ПОЛОЖЕНИЕ РАЗЪЁМА |
| C102 (68 Pin, Gray) |
Engine - Engine room fuse block |
Engine room fuse block |
| C103 (68 Pin, White) |
Body - Engine room fuse block |
Engine room fuse block |
| C114 (36 Pin, Black) |
Engine Extension - Engine |
Behind engine room fuse block |
| C201 (76 Pin, Black) |
IP - I/P fuse block |
I/P fuse block |
| C204 (22 Pin, White) |
IP - Body |
Connector box at the bottom of right A pillar |
| C206 (10 Pin, White) |
Roof - Body |
Near the center of driver A pillar |
| C206 (18 Pin, White) |
Roof - Body |
Near the center of driver A pillar |
| C207 (22 Pin, White) |
IP - TCM |
Behind drver's knee bolster |
| C216 (20 Pin, White) |
Engine - IP |
Near the Connector box at the bottom of left A pillar |
| G301 |
Body |
On the left crossmember of front floor panel |
б. УСЛОВНОЕ ОБОЗНАЧЕНИЕ & И НАХОЖДЕНИЕ НОМЕРА КОНТАКТА
в. РАСПОЛОЖЕНИЕ РАЗЪЁМОВ И СОЕДИНЕНИЙ МАССЫ
г. КОНТАКТНАЯ КОЛОДКА
S201
S302
