Epica |
||||||||
|
|
|||||||

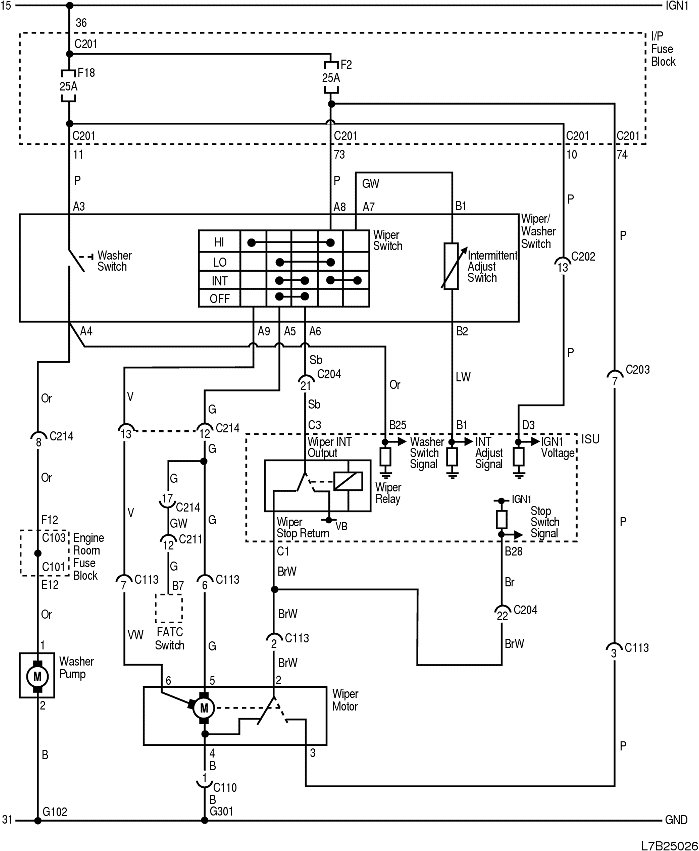

| № РАЗЪЁМА (№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ | ПОЛОЖЕНИЕ РАЗЪЁМА |
| C101 (68 Pin, Black) | Front - Engine room fuse block | Engine room fuse block |
| C103 (68 Pin, White) | Body - Engine room fuse block | Engine room fuse block |
| C110 (4 Pin, Gray) | Body - Body Sub | Beside wiper motor in cowl panel |
| C113 (8 Pin, Gray) | Body - Body Sub | Beside wiper motor in cowl panel |
| C201 (76 Pin, Black) | IP - I/P fuse block | I/P fuse block |
| C202 (23 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C203 (16 Pin, Yellow) | IP - Body | Connector box at the bottom of left A pillar |
| C204 (22 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C211 (16 Pin, White) | IP - A/C | Behind the glove box |
| C214 (23 Pin, White) | IP - Body | Connector box at the bottom of left A pillarr |
| G102 | Front | Behind right head lamp |
| G301 | Body | On the left crossmember of front floor panel |

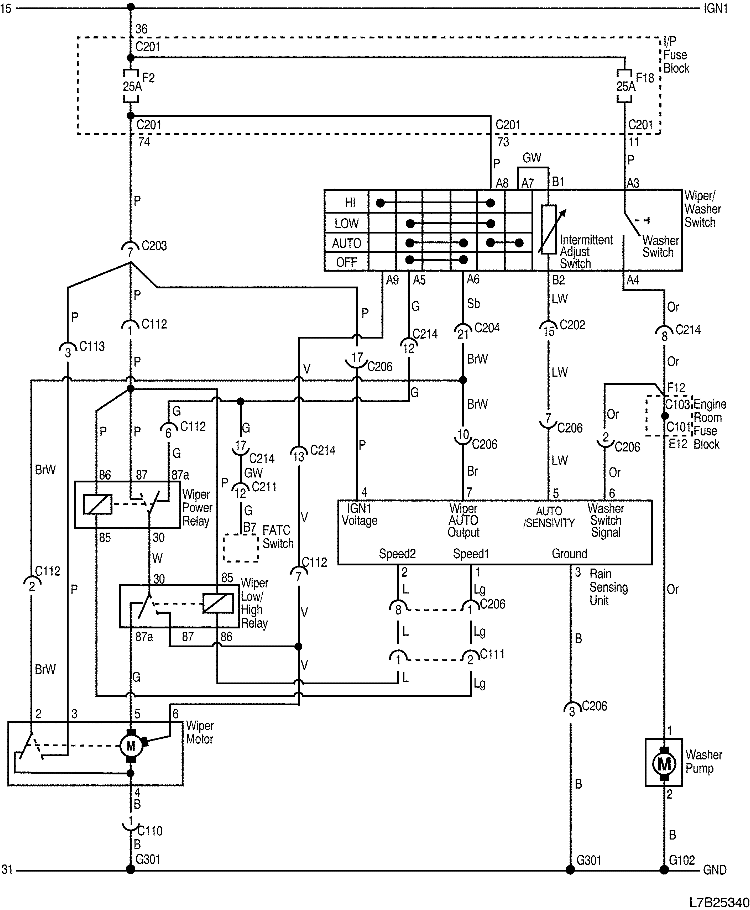

| № РАЗЪЁМА (№ И ЦВЕТ КОНТАКТА) |
СОЕДИНИТЕЛЬНЫЙ ЖГУТ ПРОВОДОВ | ПОЛОЖЕНИЕ РАЗЪЁМА |
| C101 (68 Pin, Black) | Front - Engine room fuse block | Engine room fuse block |
| C103 (68 Pin, White) | Body - Engine room fuse block | Engine room fuse block |
| C110 (4 Pin, Gray) | Body - Body Sub | Beside wiper motor in cowl panel |
| C111 (2 Pin, Gray) | Body - Body Sub | Beside wiper motor in cowl panel |
| C112 (8 Pin, Gray) | Body - Body Sub | Beside wiper motor in cowl panel |
| C201 (76 Pin, Black) | IP - I/P fuse block | I/P fuse block |
| C202 (23 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C203 (16 Pin, Yellow) | IP - Body | Connector box at the bottom of left A pillar |
| C204 (22 Pin, White) | IP - Body | Connector box at the bottom of right A pillar |
| C206 (10 Pin, White) | Roof - Body | Near the center of driver A pillar |
| C206 (18 Pin, White) | Roof - Body | Near the center of driver A pillar |
| C211 (16 Pin, White) | IP - A/C | Behind the glove box |
| C214 (23 Pin, White) | IP - Body | Connector box at the bottom of left A pillarr |
| G102 | Front | Behind right head lamp |
| G301 | Body | On the left crossmember of front floor panel |
| G303 | Body | Near back shelf of left C pillar |
 |
 |
